Ridge Bar

from £120.28

Offer: £5 standard delivery. Checkout today!
Ridge Bar image
Ridge Bar
Ridge Bar
Ridge Bar
Ridge Bar
Choose product options
Select Colour

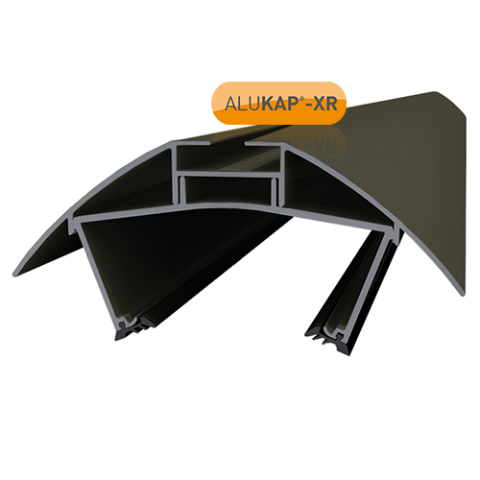

Brown
Total Price £120.28
Get Quote Via Email Read more about 'Add to quote'
Send quote via email

Not ready to order yet? Get an instant quote via email to continue later or to send to your colleague to order.

Want To Know More...

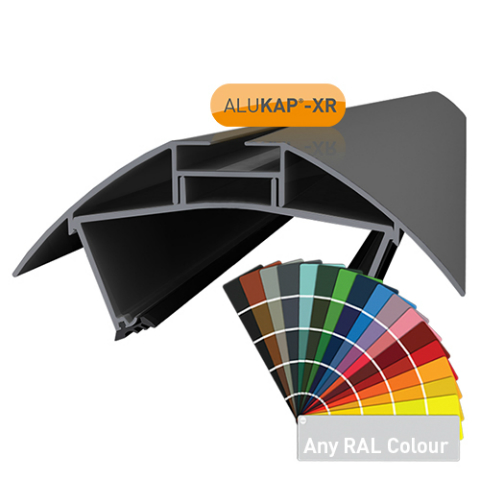

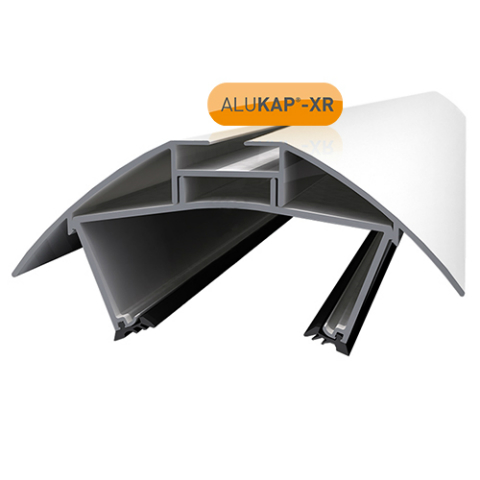

Alukap-XR Ridge Bars


The ALUKAP-XR Ridge Bar is part of the excellent ALUKAP-XR glazing bar range renowned for superior durable quality, neat watertight aesthetics and a fast installation time.

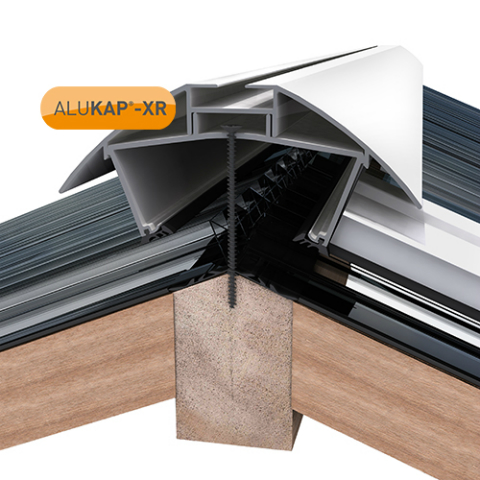

Alukap®-XR Ridge works in conjunction with the standard Alukap®-XR glazing bars (45mm and 60mm), and Hip glazing bars, giving excellent cover for the hip and standard glazing bars adjoining at a ridge junction.

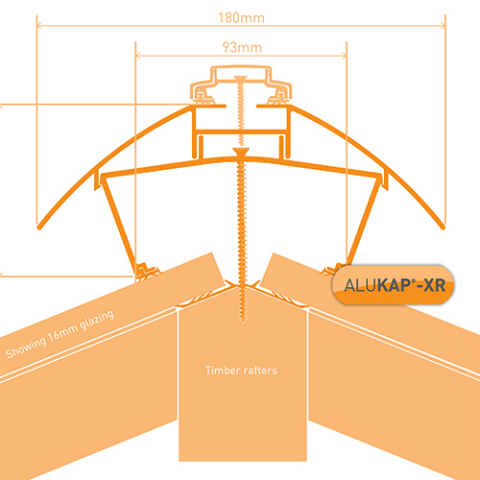

These ridge bars accommodate roof angles from 5 to 45 degree pitches thanks to the face of the upright of the Alukap®-XR Ridge Bar being designed at a special angle to make abutments for most common pitches.  The ridge bar is also designed with a full aluminium snap on cover profile which offers superior cover, providing perfect leak-proof connections from standard or hip rafter abutments.


Complementary Products

The Alukap®-XR Ridge System has options of Radius and Gable end caps, ball and spire finials and crests, or can be glazed with a plain top for a more contemporary style.


At A Glance

  • Concealed-fix Rafter Top Glazing System

  • Professional Ridge Glazing Bar

  • Suited to take varying Roof Pitch angles

  • Full Aluminium Cover Cap Covering Fixings

  • Pre-lubricated Gaskets

  • Overhang to help weatherproof Rafter abutments

  • Robust and long-lasting aluminium



The Alukap®-XR system is available for delivery in all colours - learn more.


Fitting Instructions

Download here

Related Accessories

Sorry, there are currently no Accessories for this product.

Our Most Frequently Asked Questions

Do you offer an advisory service?
Our team of specialists are on hand to help and advice as you need at no cost – you can reach them on 0113 249 2222 or via  service@theplasticpeople.co.uk. With over 40 years in the plastics industry and knowledge of all materials, manufacturers and brands, you can be confident in our impartial advice. However, to take advantage of the low prices on our site, you will need to place your order online.
What is a glazing bar ?
A glazing bar is a bar or rigid supporting strip between adjacent panes of polycarbonate or glass. .Glazing bars are commonly found in roof structures. The Plastic People have glazing bars united to self support roofing structures as well as rather supported roof structures. Our glazing bars are suitable for both polycarbonate and glass.


What is the best clear roofing material ?
When it comes to natural light and durability, Polycarbonate sheets stand out as an ideal roofing material. That’s because polycarbonate sheets allow almost exactly the same amount of natural light into a structure as glass and much more than fibre glass while also being more durable than glass and fiberglass. Choose from transparent, semi-transparent and opaque in a range of colors and tints
