Hip Bar

from £67.18

Offer: £5 standard delivery. Checkout today!
Hip Bar image
Hip Bar
Hip Bar
Hip Bar
Hip Bar
Choose product options
Select Colour
Total Price £67.18
Get Quote Via Email Read more about 'Add to quote'
Send quote via email

Not ready to order yet? Get an instant quote via email to continue later or to send to your colleague to order.

Want To Know More...

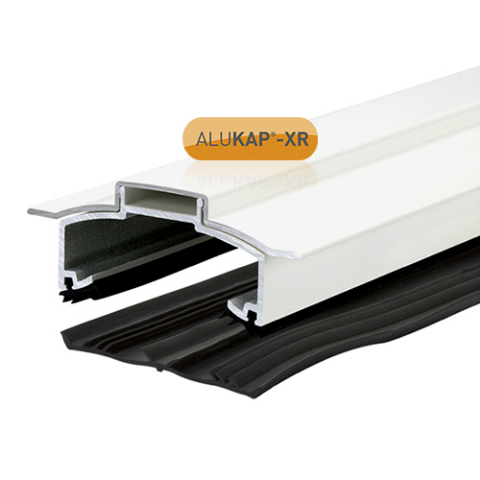

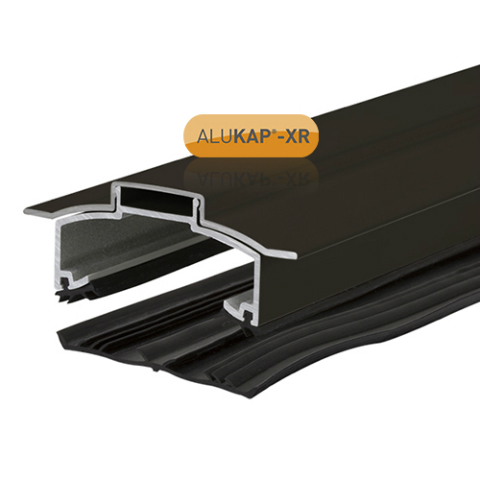

The ALUKAP-XR Hip Bar is part of the excellent ALUKAP-XR glazing bar range, an all round winning solution for long lasting watertight performance, quality aesthetics and a reduced installation time, saving you time and money.

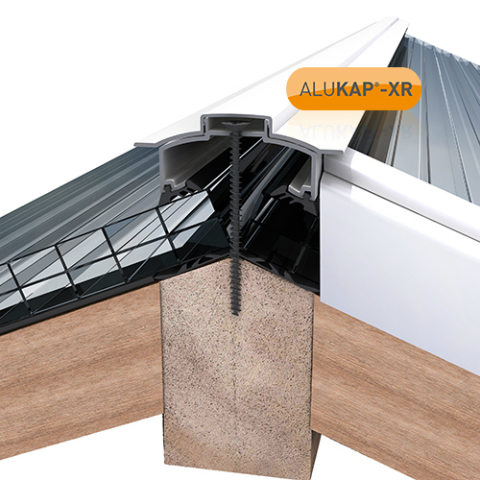

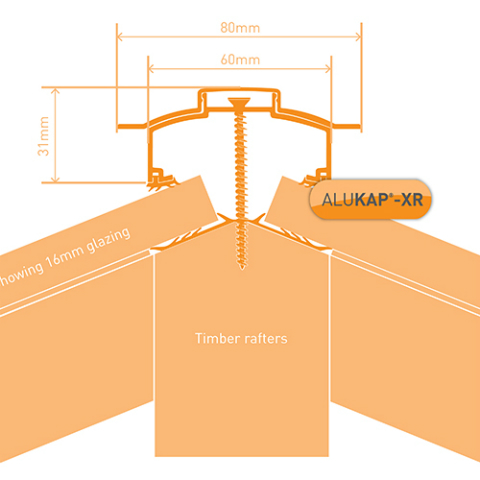

This Hip Bar is designed with extra upstand height and an overhanging top cap. The extra height gives the needed capacity to accept glazing from two different angles, as is required at a hip rafter.  The full aluminium snap cover means that perfect, leak-proof abutments can be made unencumbered during installation and sealant applied, if necessary, before snapping on the upper aluminium profile cover which acts as double protection.

The Alukap®-XR Hip bars works in conjunction with the standard Alukap®-XR glazing bars (45mm and 60mm), and Ridge glazing bars and is a must have for easy hip connections.   For stylish hip bar connections see Alukap-XR Roof Lantern Radius End Cap and Alukap-XR Roof Lantern Pinnacle Top Cap.

At A Glance

  • Concealed-fix Rafter Top Glazing System

  • Professional Ridge Glazing Bar

  • Suited to take varying Roof Pitch angles

  • Full Aluminium Cover Cap Covering Fixings

  • Pre-lubricated Gaskets

  • Overhang to help weatherproof Rafter abutments

  • Robust and long-lasting aluminium

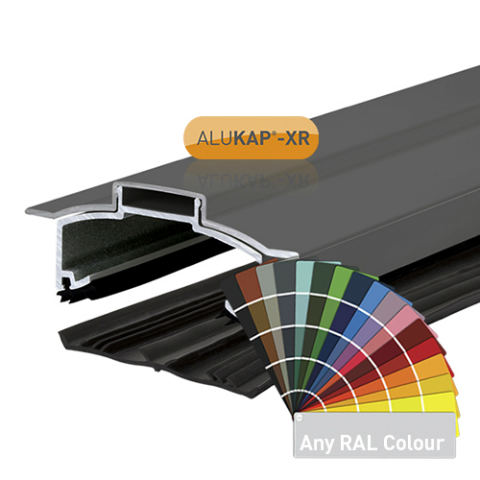

The Alukap®-XR system is available for delivery in all colours - learn more.

Fitting Instructions

Download here

Related Accessories

Sorry, there are currently no Accessories for this product.

Our Most Frequently Asked Questions

Sorry, there are currently no FAQs for this product.

To find out more about our delivery service and charges, please click here to visit our delivery information page.

Help & Advice

For more help, advice and examples of innovative use of plastic throughout the home and garden, why not visit our blog.
