45mm Bar

from £58.52

Offer: £5 standard delivery. Checkout today!
45mm Bar image
45mm Bar
45mm Bar
45mm Bar
45mm Bar
Choose product options
Select Colour
White
Total Price £58.52
Get Quote Via Email Read more about 'Add to quote'
Send quote via email

Not ready to order yet? Get an instant quote via email to continue later or to send to your colleague to order.

Want To Know More...

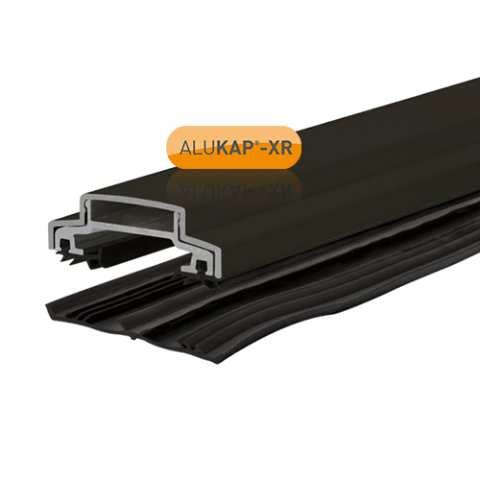

ALUKAP®-XR: 45mm BAR

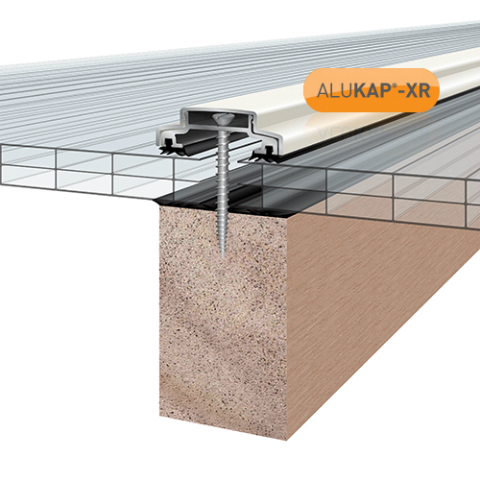

The Alukap®-XR 45mm Glazing Bar System is world leading with its all-aluminium full cover concealed cap system, which eliminates the need for any unsightly plastic caps or connectors.

The high quality multi-fin gasket system combined with the variable pressure fixing screws (supplied) allows glazing from zero degrees pitch to vertical glazing designs.

The robust aluminium base bar and cover cap are ideal for securing glass or
multiwall polycarbonate to hardwood, steel, or any other substructure.

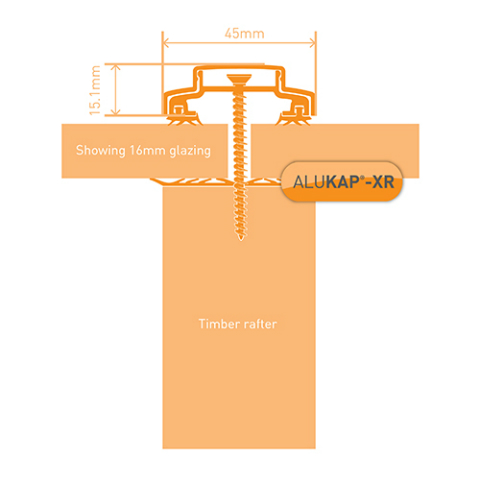

Alukap®-XR 45mm Glazing Bar System provides excellent aesthetics and naturally aligns to structures with 45mm rafters, although it can be used for rafters of any thickness. The 45mm Alukap®-XR system also comes with
Wall Bars and Gable Bars to suit any terminating rafter scenario.

ALUKAP-XR rafter gaskets make installation of ALUKAP-XR glazing bars quicker and easier. Use1m of rafter gasket for every 1m of ALUKAP-XR glazing bars ordered.


Qualities

  • Ideal for hardwood or steel rafters or frames
  • Superior weather resistance
  • Concealed fixings & protected gaskets
  • Class leading aesthetics
  • Reduced installation time
  • Manufactured from high quality aluminium and component parts
  • No plastic connectors or endcaps


Common uses

  • Hardwood Orangeries or Conservatories
  • Commercial Canopies
  • Covered Decking Areas
  • Carports
  • Bike Shelters
  • Bus Stop Shelters
  • Verandas
  • Covered walkways
  • Swimming pools.

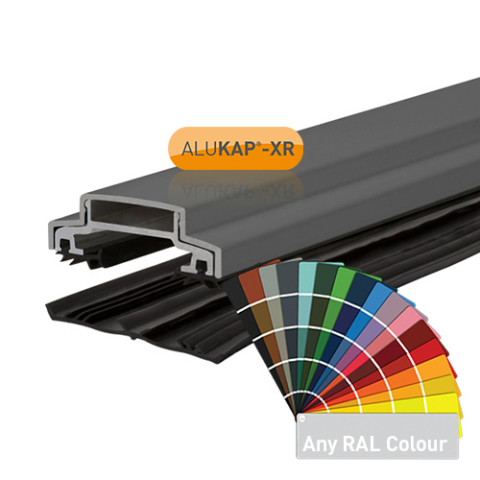

    The Alukap®-XR system is available for delivery in all colours - learn more.


    Fitting Instructions

    Download here

Related Accessories

Sorry, there are currently no Accessories for this product.
