Alukap XR – Rafter Supported Glazing Bars and Fittings

Alukap-XR Glazing Bars

With its neat aesthetics, proven gasket system, concealed fixings, superior waterproofing and quicker installation time, choose the world leading Alukap®-XR  Glazing Bar System for assurance of quality. It’s a winning durable solution for your roof glazing project with any thickness of glazing.

Glazing bars are available in two widths, 45mm and 60mm making the system ideal for wider rafter structures.  The 60mm Alukap®-XR glazing bar has been developed to cope with situations where a wider cover is required.  Its shape complements the 45mm bar so that both can be used on the one structure when required.

This glazing bar system is made with quality aluminium.  The full cover cap system provides better water proofing and is a perfect design offering excellent sightlines and aesthetics for any roof structure.

The all aluminium capping bar design eliminates the need to mess around with plastic caps or connectors which break down over time, which is why the Alukap®-XR system is watertight with no instances of leaks even in accommodating roof pitches from zero degrees pitch to totally vertical.

Supplied with multi-fin gasket systems which are combined with the variable pressure fixing screws this Alukap®-XR 60mm Glazing Bar System provides a superior waterproof, long lasting roof glazing solution.

The Alukap®-XR bar comes with the top two gaskets, and end cap and all the screws you require.

Optional 45mm and 55mm rafter base gaskets can be ordered separately.


A Range of Specialised Bars

The Alukap®-XR system comes with other complementary Glazing Bars, Wall Bars and Gable Bars to suit any terminating rafter scenario.

The Wall Bars means that flashing up against the rising wall on the side of a roof can be achieved with an entirely leak-proof solution.
The gable bars provide a perfect finish to the roof area that is often seen the most.

Hip Bars and Ridge Bars for easy hip connections and protection of roof ridge area and connections of adjoining bars.

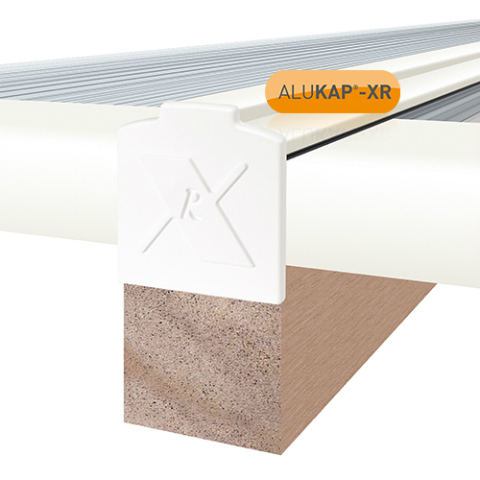

Endstop Bars featuring a substantial drip trim that will not warp, discolour, crack or fall off.

Endcaps, fixing buttons and gaskets are also available.

All Colours Available

Here at The Plastic People,  ALUKAP-XR glazing bars are available for despatch in White RAL 9010 and Brown RAL 8040.  The bars can also be made to order in your specified RAL colour to suit your scheme. Delivery of a RAL coloured glazing bar is 10 days.

At A Glance

  • Ideal for hardwood or steel rafters or frames

  • Superior weather resistance

  • Hidden fixings and protected gasket for improved sealing and aesthetics

  • Protected Gaskets

  • All aluminium components

  • Class leading aesthetics

  • Installer friendly

  • Reduced installation time

  • Manufactured from high quality aluminium

  • No plastic connectors or endcaps

  • Stainless steel screws provide self drilling assistance and deeper driver bit connection

  • Total base to cap surface cover allows simple butt-joint connections reducing waste and cost

  • Secret -fix security aluminium end cap system


Ideal For

Orangeries, conservatories, carports, roof lights, canopies and covered walkways

Fitting Instructions

Download here


Alukap XR – Rafter Supported Glazing Bars and Fittings Products

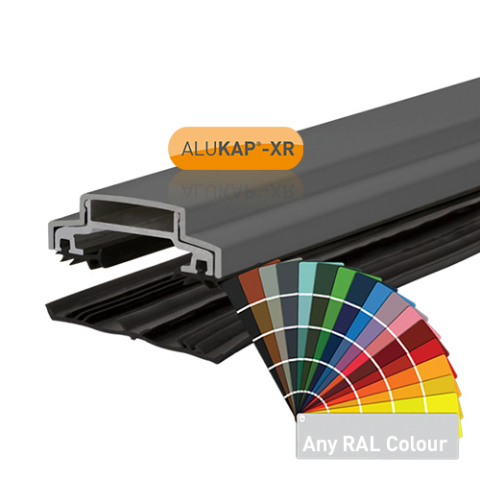

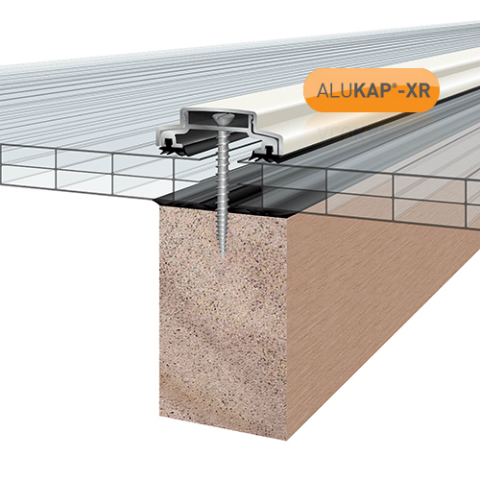

45mm Bar
45mm Bar
from £53.21 inc VAT
60mm Bar
60mm Bar
from £55.57 inc VAT

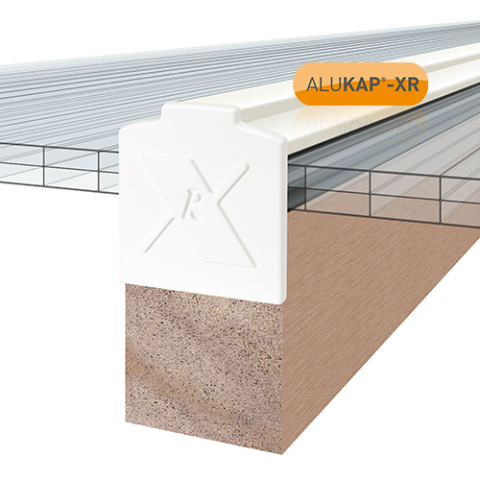

Additional Bar End Cap
Additional Bar End Cap
from £6.52 inc VAT

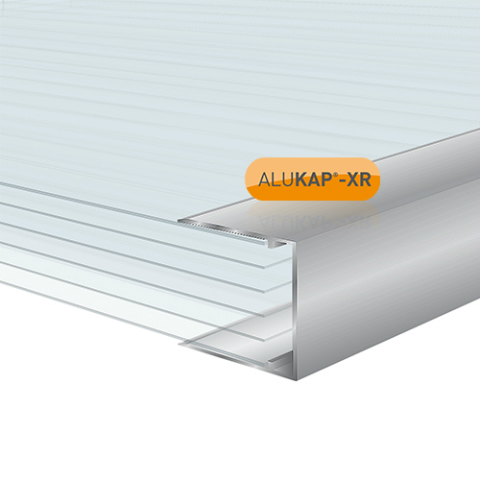

Aluminium C Section
Aluminium C Section
from £12.83 inc VAT

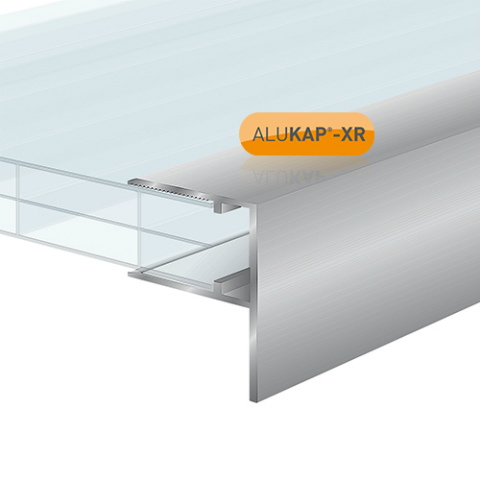

Aluminium F Section
Aluminium F Section
from £21.32 inc VAT

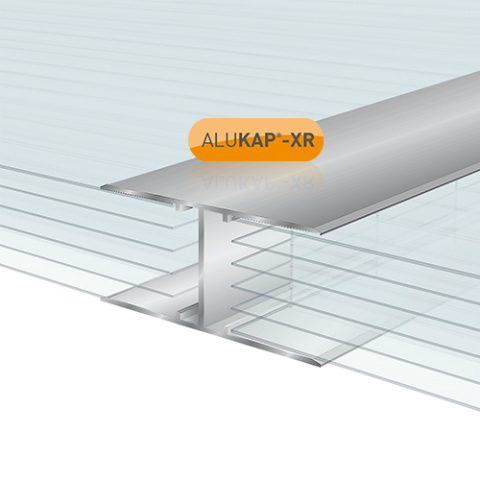

Aluminium H Section
Aluminium H Section
from £27.62 inc VAT

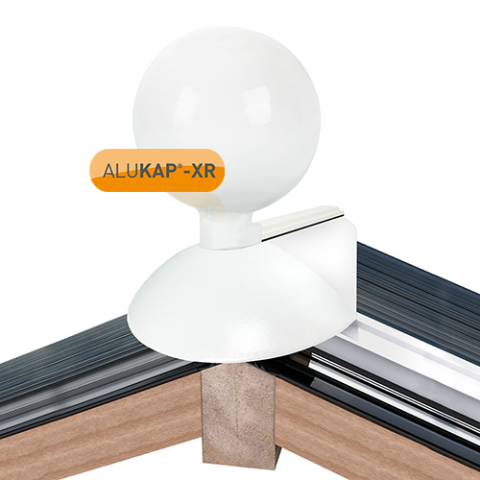

Ball Finial
Ball Finial
from £110.77 inc VAT

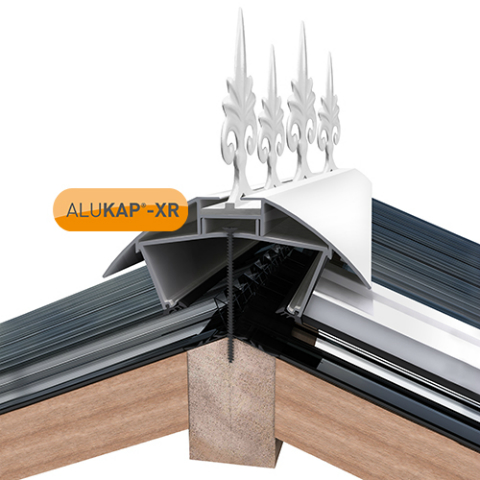

Crest Finial
Crest Finial
from £60.14 inc VAT


End Stop Bar
End Stop Bar
from £27.24 inc VAT

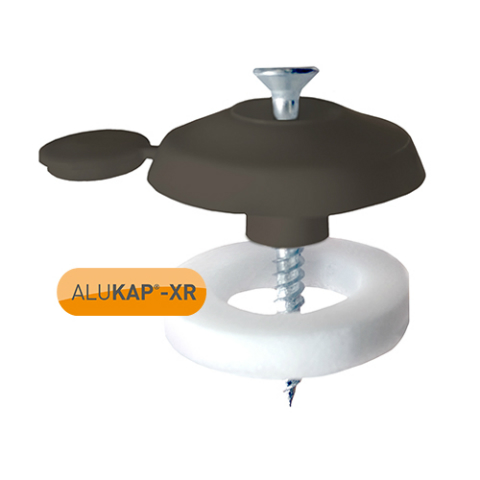

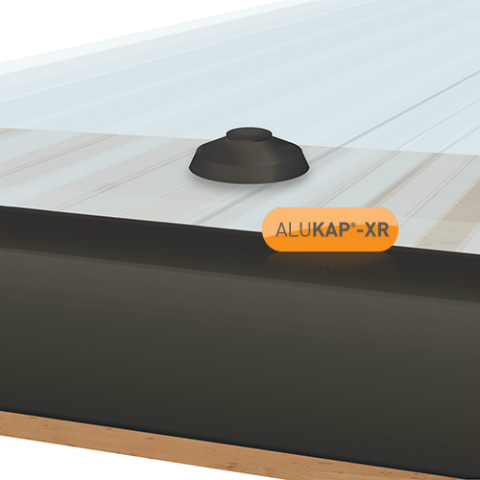

Fixing Buttons - Pack of 50
Fixing Buttons - Pack of 50
from £43.22 inc VAT

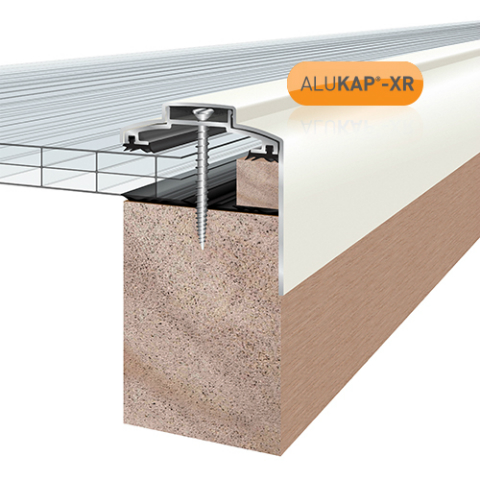

Gable Bar
Gable Bar
from £77.66 inc VAT

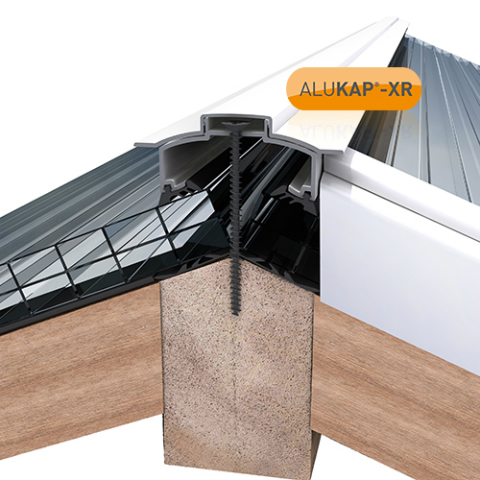

Hip Bar
Hip Bar
from £61.07 inc VAT

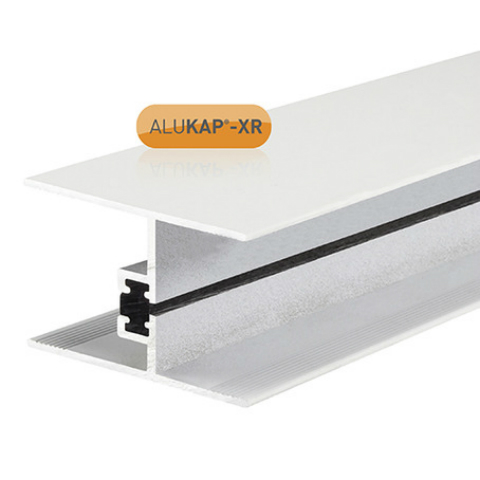

Horizontal Glazing Bar
Horizontal Glazing Bar
from £113.50 inc VAT

Rafter Gasket - Slot Fit
Rafter Gasket - Slot Fit
from £3.40 inc VAT

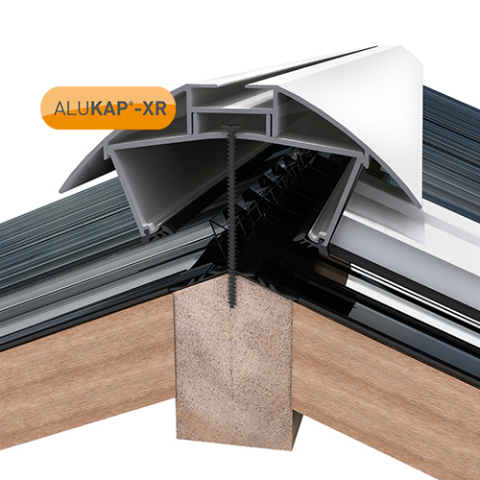

Ridge Bar
Ridge Bar
from £109.34 inc VAT


Ridge Gable End Plate
Ridge Gable End Plate
from £60.83 inc VAT

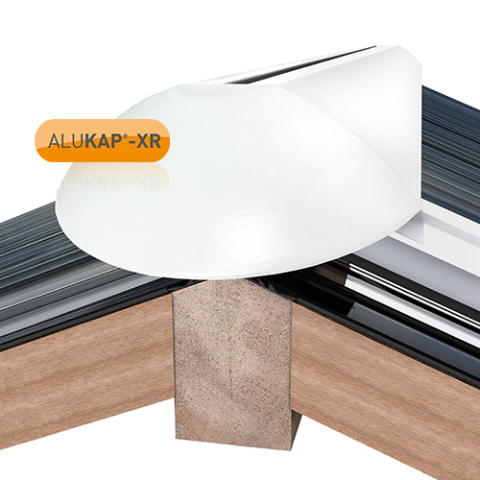

Ridge Radius End Cap
Ridge Radius End Cap
from £67.74 inc VAT

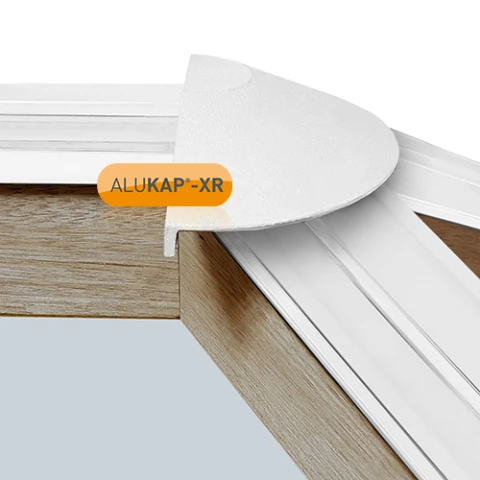

Roof Lantern Radius End Cap
Roof Lantern Radius End Cap
from £68.94 inc VAT

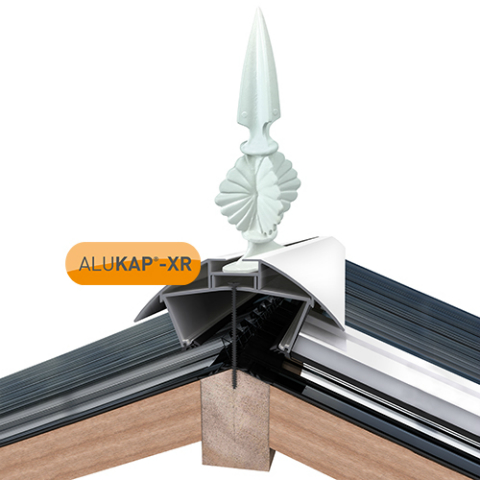

Standard Finial
Standard Finial
from £48.46 inc VAT
Wall Bar
Wall Bar
from £78.66 inc VAT
