Low Profile Gable Bar

from £157.08

Offer: £5 standard delivery. Checkout today!
Low Profile Gable Bar image
Low Profile Gable Bar
Low Profile Gable Bar
Low Profile Gable Bar
Low Profile Gable Bar
Choose product options
Select Colour
White
Total Price £157.08
Get Quote Via Email Read more about 'Add to quote'
Send quote via email

Not ready to order yet? Get an instant quote via email to continue later or to send to your colleague to order.

Want To Know More...

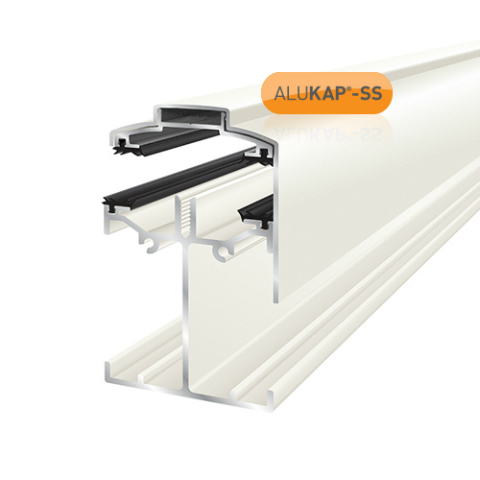

Alukap-SS Low Profile Gable Bar

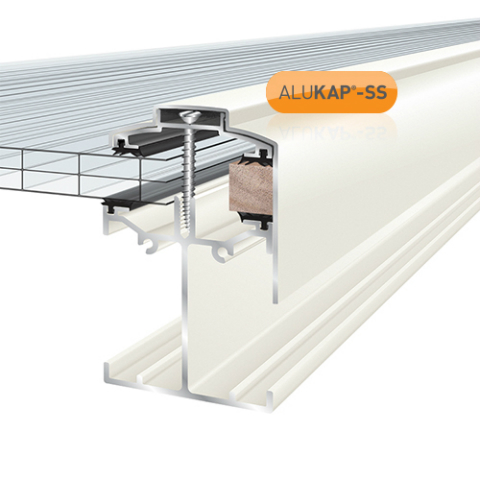

Choose Alukap®-SS Low Profile Gable Bar for the perfect glazing finish to a gable end rafter for the sides of any roof.

Made from lightweight, high strength aluminium, the Alukap®-SS Low Profile Bar provides a robust structural beam for unsupported glazing spans up to 3m and is suitable for 6mm – 35mm polycarbonate.

The all-aluminium Alukap®-SS glazing system provides robust, long lasting aesthetically pleasing finish to any residential, public, or commercial canopy or roofing structure.

Estimated load span advice is available upon request, although users are advised to obtain their own independent advice to verify the span calculations are correct for their site-specific application.

Choose Alukap-SS wall and gable bars for a suitable finish to the upper part of the glazing beams at wall abutments and gable ends.


Other Specialised Bars to Match

The Alukap®-SS system also comes with other complementary glazing bars and accessories.

  • Wall & eaves beam end cap

  • Wall and eaves beam

  • Low profile gable bar

  • Low profile cap bar

  • High span wall bar

  • High span gable bar

  • High span cap

  • Complete post and bracket kit

 At A Glance

  • Excellent high strength spanning capabilities

  • No need for timber rafters

  • Fast to install

  • Maintenance free

  • Hidden glazing fixings

  • Suits almost any thickness of glazing sheet

  • Long-lasting powder-coated aluminium finish

  • Can be used with Glass or plastic glazing sheets

  • Supplied with Alukap-SS gaskets, screws and endcap

  • Quick and easy to install


Ideal For

Decking and veranda covers, shelters, conservatories, canopies, swimming pools, lean-to’s, play area covers and covered walkways


The Alukap®-XR system is available for delivery in all colours - learn more.


Fitting Instructions

Download here

Important Information - Alukap-SS: In as much as we have no control over the circumstances in which our material may be used, we cannot guarantee that any particular results will be achieved. Users should carry out their own tests and obtain structural engineer calculations as required to determine the suitability of the material for their application. Installers should satisfy themselves that published permissible loadings and bar spacing’s for Alukap-SS roofs and posts are sufficient to provide adequate strength for the intended use and to meet regional loading requirements.
