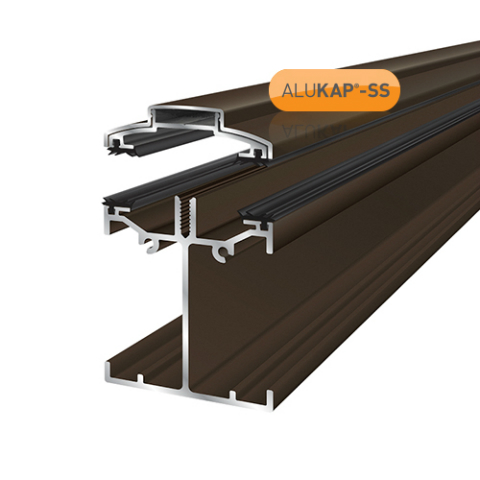

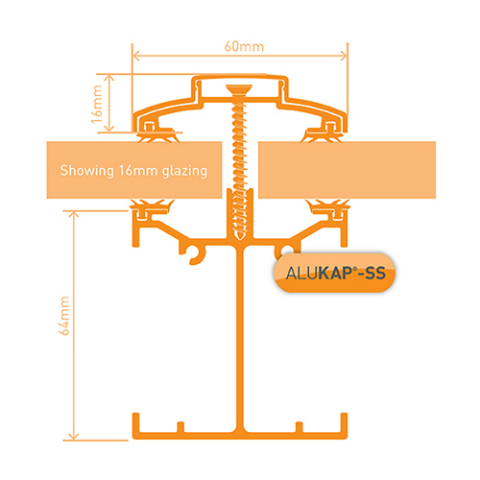

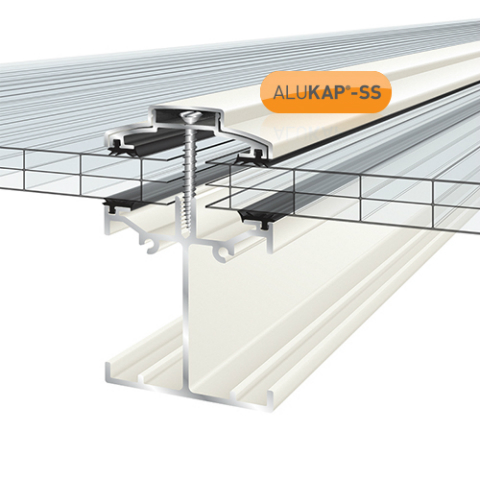

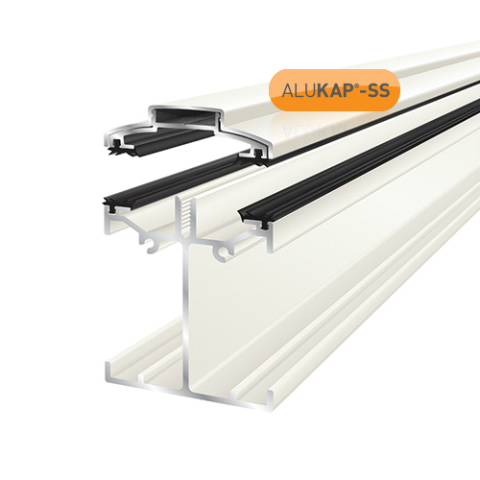

With its combination of clean, neat aesthetics and awesome free spanning strength, you can rely on the Alukap®-SS Glazing Bar System for a low weight, high strength structure to take commercial and canopy glazing to a whole new level. It’s a winning durable, quality solution for your roof glazing project. Alukap®-SS is manufactured entirely from lightweight, quality powder-coated aluminium to withstand the toughest and most challenging of environments as well as delivering a high structural spanning strength providing the ultimate glazing bar system for both commercial, residential and public building structures and canopies. Choose Alukap®-SS low profile bars for shorter spans of up to 3m. Choose Alukap -SS High Span bars for spans of up to 6m. The Alukap – SS low profile glazing bar system is ideal for shorter spans and also areas where a centre purlin is provided to break the overall span. It is suitable for use with 6mm, 10mm, 16mm, 25mm and 35mm multiwall polycarbonate. The main top bar comes pre-drilled for quick installation. There is a full-width aluminium snap-down cover cap to conceal all the fixings and pre-lubricated gaskets. There is a metal end cap to reduce glazing slippage. Choose Alukap-SS wall and gable bars for a suitable finish to the upper part of the glazing beams at wall abutments and gable ends. Other Specialised Bars To Match The Alukap®-SS system also comes with other complementary glazing bars and accessories.
Wall & eaves beam end cap
Wall and eaves beam
Low profile gable bar
Low profile cap bar
High span wall bar
High span gable bar
High span cap
Complete post and bracket kit
At A Glance
Excellent high strength spanning capabilities
No need for timber rafters
Fast to install
Maintenance free
Hidden glazing fixings
Suits almost any thickness of glazing sheet
Long-lasting powder-coated aluminium finish
Can be used with Glass or plastic glazing sheets
Supplied with Alukap-SS gaskets, screws and endcap
Quick and easy to install
Ideal For
Decking and veranda covers, shelters, conservatories, canopies, swimming pools, lean-to’s, play area covers and covered walkways

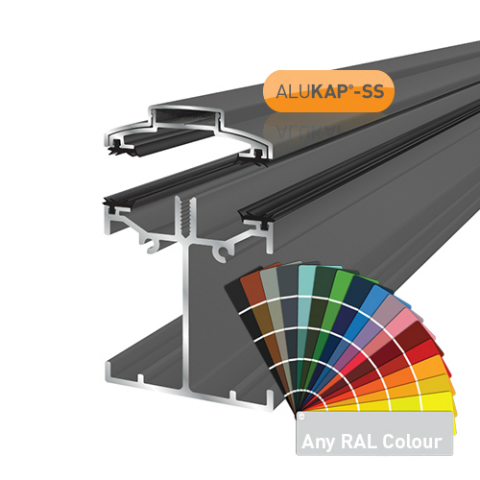

The Alukap®-XR system is available for delivery in all colours - learn more.
Fitting Instructions Download here Important Information - Alukap-SS: In as much as we have no control over the circumstances in which our material may be used, we cannot guarantee that any particular results will be achieved. Users should carry out their own tests and obtain structural engineer calculations as required to determine the suitability of the material for their application. Installers should satisfy themselves that published permissible loadings and bar spacing’s for Alukap-SS roofs and posts are sufficient to provide adequate strength for the intended use and to meet regional loading requirements.
