High Span Bar

from £141.26

Offer: £5 standard delivery. Checkout today!
High Span Bar image
High Span Bar
High Span Bar
High Span Bar
High Span Bar
Choose product options
Select Colour
White
Total Price £141.26
Get Quote Via Email Read more about 'Add to quote'
Send quote via email

Not ready to order yet? Get an instant quote via email to continue later or to send to your colleague to order.

Want To Know More...

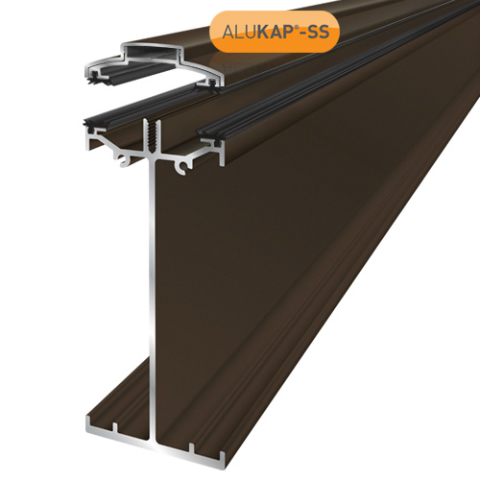

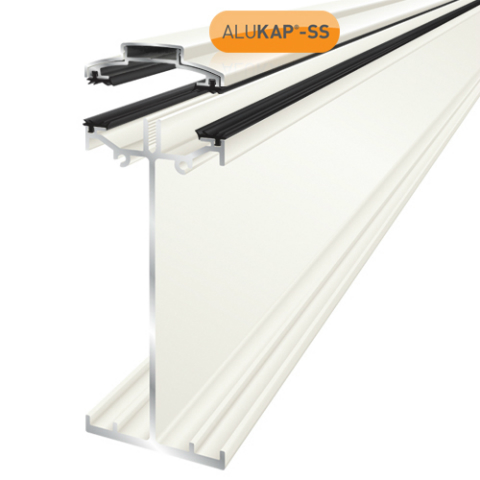

Alukap-SS High Span Glazing Bars

Alukap®-SS High Span Glazing Bar has a free-spanning range of up to 6 metres, bettering possibly every other available self-supporting glazing bar. Use them to create much more usable spaces with fewer posts and other supports.

The Alukap®-SS High Span Bar is extruded to deliver a high structural spanning strength providing the ultimate glazing bar system for all commercial, residential and public building structures and canopies. Additionally, Alukap®-SS is designed to work well with Axiome®

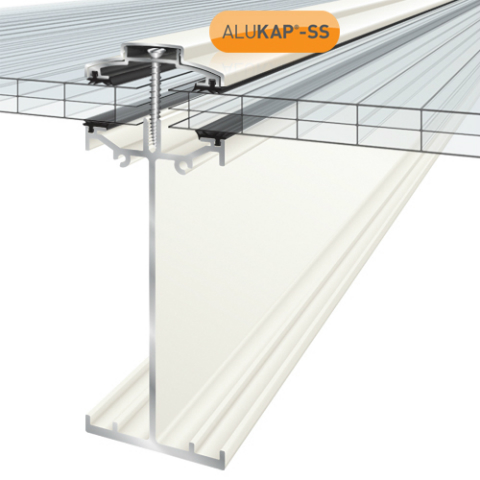

polycarbonate sheet, single glass glazing and double glazed units. All glazing options work perfectly with the Alukap®-SS wall plate and eaves beam structures too.

Made entirely from quality powder-coated aluminium, the Alukap®-SS glazing system is a low weight, high strength structure that withstands the toughest and most challenging of environments.

With its combination of clean and neat aesthetics, you can rely on the Alukap®-SS Glazing Bar System to suit a wide range of commercial, residential and public structures.

The main top bar comes pre-drilled for quick installation. There is a full-width aluminium snap-down cover cap to conceal all the fixings and pre-lubricated gaskets.  There is a metal end cap to reduce glazing slippage.

Choose Alukap®-SS low profile bars for shorter spans of between 3m and 4m.

Choose Alukap-SS wall and gable bars for a suitable finish to the upper part of the glazing beams at wall abutments and gable ends.

Other Specialised Bars to Match

The Alukap®-SS system also comes with other complementary glazing bars and accessories.

  • Wall & eaves beam end cap

  • Wall and eaves beam

  • Low profile gable bar

  • Low profile cap bar

  • High span wall bar

  • High span gable bar

  • High span cap

  • Complete post and bracket kit


At A Glance

  • Excellent high strength spanning capabilities

  • No need for timber rafters

  • Fast to install

  • Maintenance free

  • Hidden glazing fixings

  • Suits almost any thickness of glazing sheet

  • Long-lasting powder-coated aluminium finish

  • Can be used with Glass or plastic glazing sheets

  • Supplied with Alukap-SS gaskets, screws and endcap

  • Quick and easy to install


Ideal For

Decking and veranda covers, shelters, conservatories, canopies, swimming pools, lean-to’s, play area covers and covered walkways

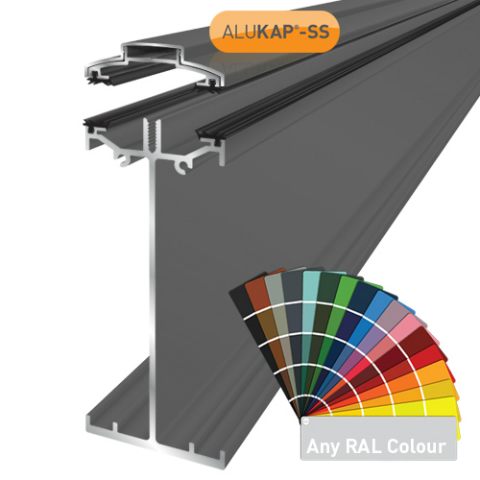

The Alukap®-XR system is available for delivery in all colours - learn more.


Fitting Instructions

Download here

Important Information - Alukap-SS: In as much as we have no control over the circumstances in which our material may be used, we cannot guarantee that any particular results will be achieved. Users should carry out their own tests and obtain structural engineer calculations as required to determine the suitability of the material for their application. Installers should satisfy themselves that published permissible loadings and bar spacing’s for Alukap-SS roofs and posts are sufficient to provide adequate strength for the intended use and to meet regional loading requirements.
