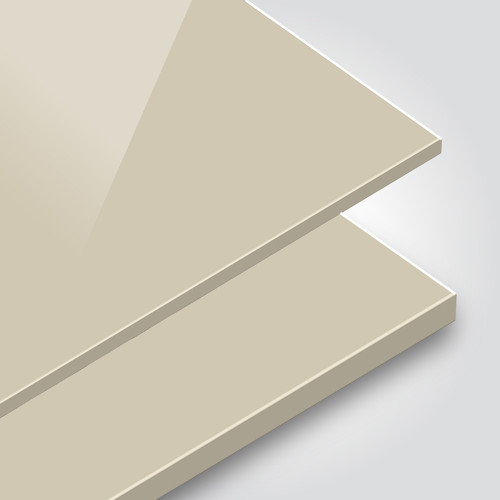

Natural Acetal Extruded Co-polymer Sheets

from £35.64

Offer: £5 standard delivery. Checkout today!
Natural Acetal Extruded Co-polymer Sheets image
Choose product options
Total Price £35.64
Get Quote Via Email Read more about 'Add to quote'
Send quote via email

Not ready to order yet? Get an instant quote via email to continue later or to send to your colleague to order.

Sample available

£3.00 each or 2 for £5.00

Customer Stories

Want To Know More...

Acetal


Acetal offers an ideal combination of strength, toughness and hardness with excellent slide especially suited for chemical applications.

Our Acetal extruded co-polymer sheets are semi crystalline thermoplastic and characterised by a low coefficient of friction, good wear properties and offer resistance to a wide range of chemicals, including many solvents. They also provide high mechanical strength, stiffness and heat resistance. As water absorption is very low, dimensional accuracy and stability is improved over nylons.


Typical Uses

  • High mechanical strength, stiffness and hardness
  • Excellent resilience
  • Good creep resistance
  • High impact strength, even at low temperatures
  • Very good dimensional stability (low water absorption)
  • Good sliding properties and wear resistance
  • Excellent machinability
  • Good electrical insulating and dielectric properties
  • Physiologically inert (most grades are suitable for food contact)


Example Applications

Gear wheels with small modulus, cams, heavily loaded bearings and rollers, bearings and gears with small clearances, valve seats, snap-fit assemblies, dimensionally stable precision parts, electrically insulating components.

Related Accessories

Sorry, there are currently no Accessories for this product.

Our Most Frequently Asked Questions

Does acetal have good chemical resistance?
Yes, acetal is considered good for chemical resistance as are:.
•    HDPE
•    Polypropylene
•    PTFE
•    PEEK
•    PVC
•    RG1000
•    UHMWPE

Does acetal have good wear resistance?
Acetal is classed as a high wear resistant plastic as are:
•    Delrin
•    Nylon 6
•    Nylon 6.6
•    Oilon
•    HDPE
•    Polypropylene
•    Polyurethane
•    PEEK
•    RG1000
•    Whale Tufnol
•    UHMWPE
•    PET

Is acetal considered easy or difficult to bond?
Acetal is considered difficult to bond.  These plastics are considered easy to bond:
•    Nylon 6
•    Nylon 6.6
•    PEEK
•    PVC
•    Polyurethane
•    Tufnol
•    Acrylic
•    Polycarbonate
•    ABS

These plastics are considered difficult to bond
•    Acetal
•    Delrin
•    Oilon
•    HDPE
•    Polypropylene
•    PTFE
•    RG1000
•    UHMWPE
•    PVDF

Is acetal easy to machine?
Acetal is considered easy to machine as are :
•    Delrin
•    Cast Nylon 6
•    Nylon 6.6
•    Oilon
•    HDPE
•    PEEK
•    PVC
•    RG1000
•    Tufnol
•    UHMWPE

What is the operating temperatures of acetal ?
100 degrees centigrade long term; 140 degrees centigrade short term. Long term typically means between 5,000 and 20,000 hours operating at this temperature without losing more than 50% of its performance. Short term typically means upto 2 hours at any one time.

To find out more about our delivery service and charges, please click here to visit our delivery information page.

Help & Advice


For more help, advice and examples of innovative use of plastic throughout the home and garden, why not visit our blog.

Data Sheet


Download Data Sheet
