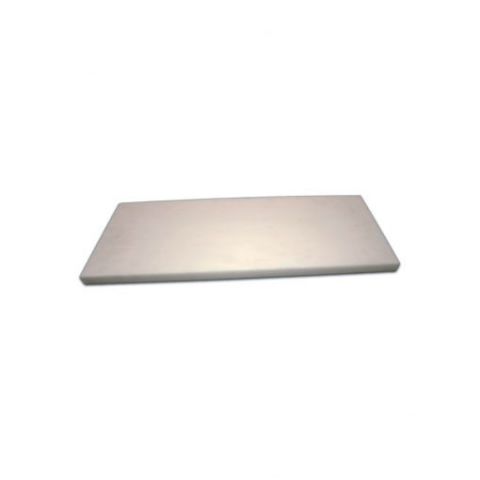

Natural Nylon 6 Sheet - Extruded
Extruded Nylon 6 offers strength, stiffness and good mechanical properties whilst offering good electrical insulation and chemical resistance at a wide operating temperature range (-40°C to +70°C). Nylon 6 is regarded as a general purpose material and is food compliant.
Extruded Nylon 6 Sheet is made by forcing the material through a die. The benefit of this that extruded nylon 6 sheets more accurate in terms of thickness than Cast Nylon 6. The downside is that Extruded Nylon 6 can have more internal stress. Our plastic engineers advise that it is a little more difficult to machine than Cast Nylon 6 and can melt more easily while machining.
Key Characteristics
- General purpose grade.
- Favourable electrical insulating ability.
- Excellent wear resistance.
Applications
- Gears.
- Bushes.
- Washers.
- Spacers.
Nylon FAQs
Does nylon have good wear resistance?
Nylon 6 and 66 are classed as high wear resistant plastics, as are:
- Acetal
- Delrin
- Oilon
- HDPE
- Polypropylene
- Polyurethane
- PEEK
- RG1000
- Whale Tufnol
- UHMWPE
- PET
Does nylon offer high chemical resistance?
Nylon is not considered good for chemical resistance. The following plastics are:
- Acetal
- HDPE
- Polypropylene
- PTFE
- PEEK
- PVC
- RG1000
- UHMWPE
Is nylon considered easy to machine?
Nylon is generally considered easy to machine, as are:
- Acetal
- Delrin
- Oilon
- HDPE
- PEEK
- PVC
- RG1000
- Tufnol
- UHMWPE
Is nylon easy or difficult to bond?
Nylon is considered easy to bond. The following plastics are also considered easy to bond:
- Nylon 6
- Nylon 6.6
- PEEK
- PVC
- Polyurethane
- Tufnol
- Acrylic
- Polycarbonate
- ABS
These plastics are considered difficult to bond:
- Acetal
- Delrin
- Oilon
- HDPE
- Polypropylene
- PTFE
- RG1000
- UHMWPE
- PVDF
What are the differences between Nylon 6 and Nylon 6.6?
Nylon 6.6 has a 6% higher operating temperature, is 13% harder, 10% more rigid and has a tensile strength that is 8% greater. Nylon 6, on the other hand, has a greater size range but the main difference is it can be around 30% cheaper.
What is the operating temperature of nylon 66?
Nylon 66 has an operating temperature of 100 °C long term and 170 °C short term.
Long term typically means between 5,000 and 20,000 hours operating at this temperature without losing more than 50% of its performance. Short term typically means up to 2 hours at any one time.
