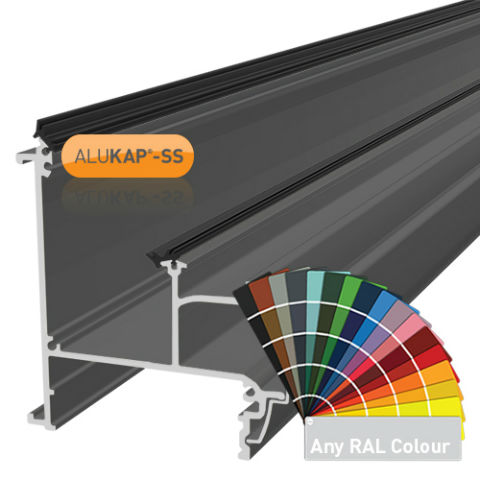

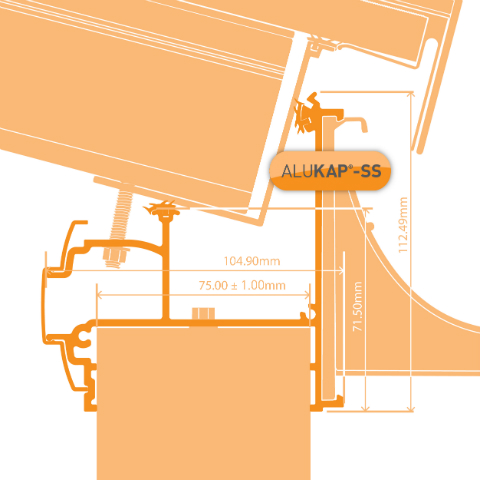

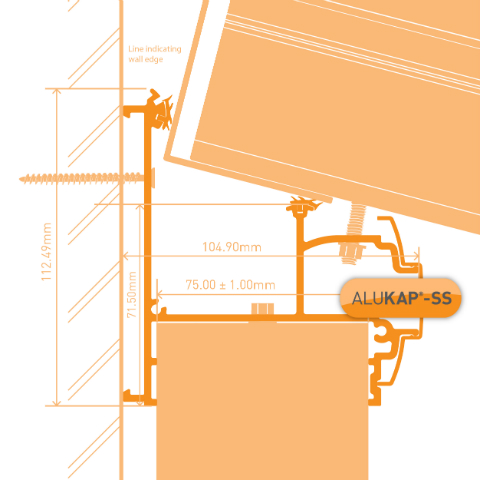

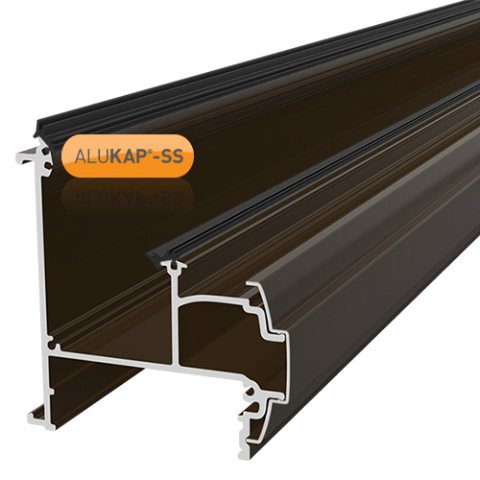

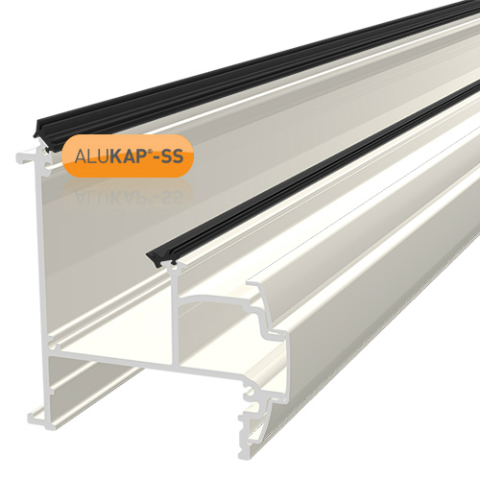

Alukap-SS Wall & Eaves Beam provides a variable pitch solution to suit a wide range of pitches from 2.5 to 25 degrees. Made from quality powder-coated aluminium, the Alukap®-SS Wall and Eaves Beam is a low weight, high strength structure suitable for the toughest and most challenging of environments. With its combination of clean and neat aesthetics, you can rely on the wall and eaves beam to suit a wide range of commercial, residential and public structures. When used as a Wall Plate the Alukap®-SS Wall and Eaves Beam can be bolted to a wall or similar structure to provide a robust and straight wall plate to glaze from. The intersecting Alukap-SS bars bolt into the Alukap®-SS Wall and Eaves Beam with M6 stainless steel bolts provided and the cover strip clicks in to place concealing the fixing points. The Alukap®-SS Wall and Eaves Beam also provides an installer-friendly Deep Flow Quadraflo Gutter bracket locator to increase speed and accuracy during installation.
Other Specialised Bars To Match
The Alukap®-SS system also comes with other complementary glazing bars and accessories.
Wall & eaves beam end cap
Wall and eaves beam
Low profile gable bar
Low profile cap bar
High span wall bar
High span gable bar
High span cap
Complete post and bracket kit
At A Glance
Excellent high strength spanning capabilities
No need for timber rafters
Fast to install
Maintenance free
Hidden glazing fixings
Suits almost any thickness of glazing sheet
Long-lasting powder-coated aluminium finish
Can be used with Glass or plastic glazing sheets
Supplied with Alukap-SS gaskets, screws and endcap
Quick and easy to install
Ideal For
Decking and veranda covers, shelters, conservatories, canopies, swimming pools, lean-to’s, play area covers and covered walkways The Alukap®-XR system is available for delivery in all colours - learn more.
Fitting Instructions Download here Important Information - Alukap-SS: In as much as we have no control over the circumstances in which our material may be used, we cannot guarantee that any particular results will be achieved. Users should carry out their own tests and obtain structural engineer calculations as required to determine the suitability of the material for their application. Installers should satisfy themselves that published permissible loadings and bar spacing’s for Alukap-SS roofs and posts are sufficient to provide adequate strength for the intended use and to meet regional loading requirements.
