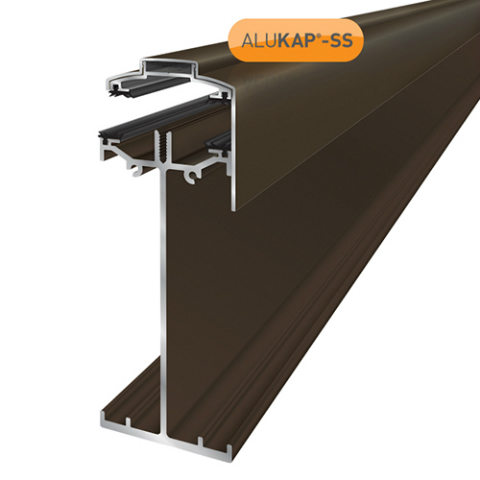

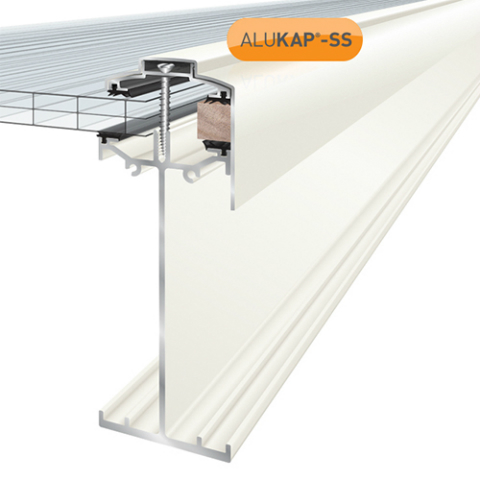

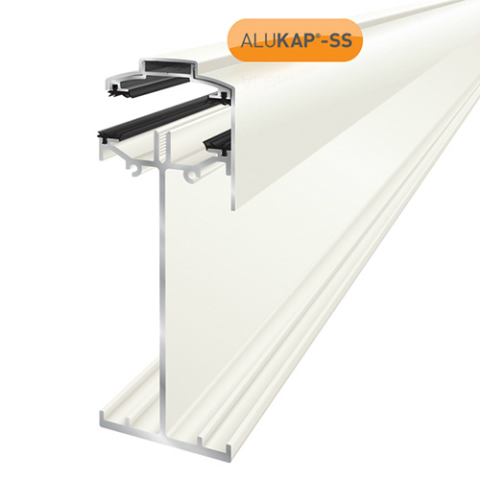

Alukap®-SS High Profile Gable Bar is a self-supporting gable bar delivering a perfect glazing finish to a gable end rafter for the sides of any roof not up against a wall. Made from lightweight, high strength aluminium, the Alukap®-SS High Span Gable Bar provides a robust structural beam for unsupported glazing spans of up to 6m and is suitable for 6mm – 35mm multiwall polycarbonate. The all-aluminium Alukap®-SS glazing system is ideal for residential, public or commercial roofing structures and provides a robust, long lasting, neat and clean aesthetically pleasing finish. Estimated load span advice is available upon request, although users are advised to obtain their own independent advice to verify the span calculations are correct for their site-specific application.
Other Specialised Bars To Match The Alukap®-SS system also comes with other complementary glazing bars and accessories.
Wall & eaves beam end cap
Wall and eaves beam
Low profile gable bar
Low profile cap bar
High span wall bar
High span gable bar
High span cap
Complete post and bracket kit
At A Glance
Excellent high strength spanning capabilities
No need for timber rafters
Fast to install
Maintenance free
Hidden glazing fixings
Suits almost any thickness of glazing sheet
Long-lasting powder-coated aluminium finish
Can be used with Glass or plastic glazing sheets
Supplied with Alukap-SS gaskets, screws and endcap
Quick and easy to install
Ideal For
Decking and veranda covers, shelters, conservatories, canopies, swimming pools, lean-to’s, play area covers and covered walkways

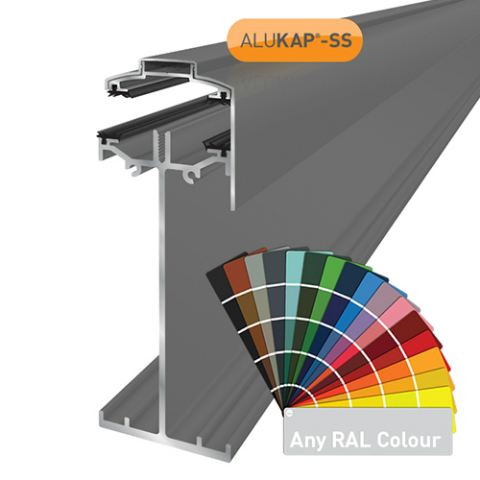

The Alukap®-XR system is available for delivery in all colours - learn more.
Fitting Instructions Download here Important Information - Alukap-SS: In as much as we have no control over the circumstances in which our material may be used, we cannot guarantee that any particular results will be achieved. Users should carry out their own tests and obtain structural engineer calculations as required to determine the suitability of the material for their application. Installers should satisfy themselves that published permissible loadings and bar spacing’s for Alukap-SS roofs and posts are sufficient to provide adequate strength for the intended use and to meet regional loading requirements.
Sorry, there are currently no Accessories for this product.
As polycarbonate is so strong, you can be confident you'll not need to replace the panels anytime soon. The material is also ideal for making cold frames and cloches, as well as replacing glass to make vulnerable doors and windows more secure.
